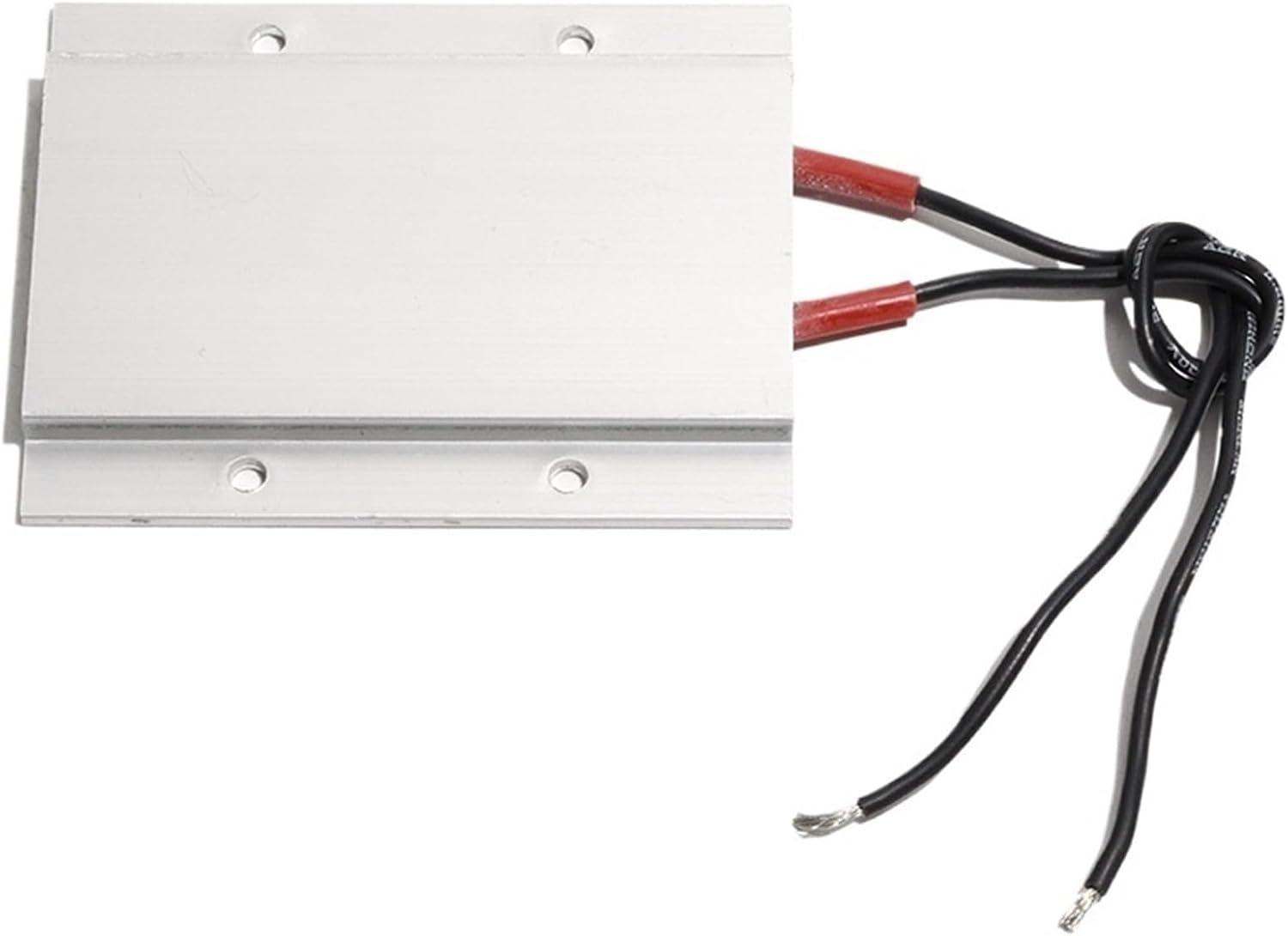

PTC Air Electric Heater Plate, 2PCS 77x62x6mm, 12V-48V/110V, 70-230°C, Constant Temperature(110V 230C)

1. Size:77x62x6mm (LxWxT)2.Voltage:12V 24V 36V 48V 110V3.Temperature:70-230℃4.Shell Material:High Temperature Aluminum Shell5.Heat Material: PTC Thermistor6.Lead Wire Length: about 10cm7.Advantage: Can long-term dry heat, heating fast, surface insulation8.Temperature Tolerance: ±109.Package:2PCS PTC heating elementsPay attention: Power Allowance-10%~+5%Application:1. Advantages: dry burning, energy saving, constant temperature, long life, no open flame, suitable for micro equipment low-power depyretic, preheating and damp removal.2. Usage: Electric PTC aluminum heater plate for water kettle,electric lunchbox,electric iron.It can be used in static heating foot bathtub, hair permanent clamp,heat preservation apparatus,thermos bottles,electric heating plate,electric iron,dryer,hand warmer,humidifierand other small heating appliances . A wide range of types with different designs and performance is available. 3. Power supply: directly connected to the rated voltage, AC and DC, no positive and negative poles. Taking the 12V heating element as an example, it can be connected to AC and DC 12V, and the power supply current must be greater than the maximum heating current of the heating element, otherwise the heating element cannot be bred.4. Wattage: After the PTC heating sheet is energized, the power is small to large and then small, and finally stable.Stable power is directly related to heat dissipation, fast heat dissipation, power consumption is also more, we write the maximum dissipated power, the actual use of power is less than the maximum dissipated power.Installation and Use1. It is strictly forbidden to use it in flammable and explosive occasions, and it is strictly forbidden to put it into water.It is forbidden to knock and open holes.2. The wiring of multiple heating elements of the same voltage can be used in parallel, and the multiple heating elements can be installed side by side, and the heating elements cannot be overlapped and installed, otherwise the heat will be canceled.3. Multiple heating elements should be connected in parallel when used together, the more heating elements, the greater the power. 5.5 The decrease of the power supply voltage will make the heating time longer and the power smaller, but the temperature will be basically constant (temperature drop slightly).Welcome to your visitYour satisfaction, our pursuit

• Wide Voltage Compatibility: Supports 12V, 24V, 36V, 48V, and 110V power inputs, making it adaptable to various electronic and industrial systems.
• Self-Regulating Temperature: PTC technology automatically maintains set temperatures (70°C, 110°C, 200°C, 220°C, 230°C) for consistent performance.
• Compact & Efficient Design: The 77x62x6mm plate size offers a substantial heating surface while remaining suitable for integration into enclosures and ducts.
• Optimized for Air Heating: Designed specifically to efficiently heat air in ventilation systems, dryers, 3D printer chambers, and equipment warmers.
• Complete Two-Plate Kit: Includes two identical heater plates, perfect for creating balanced heating zones or having a spare for maintenance.
