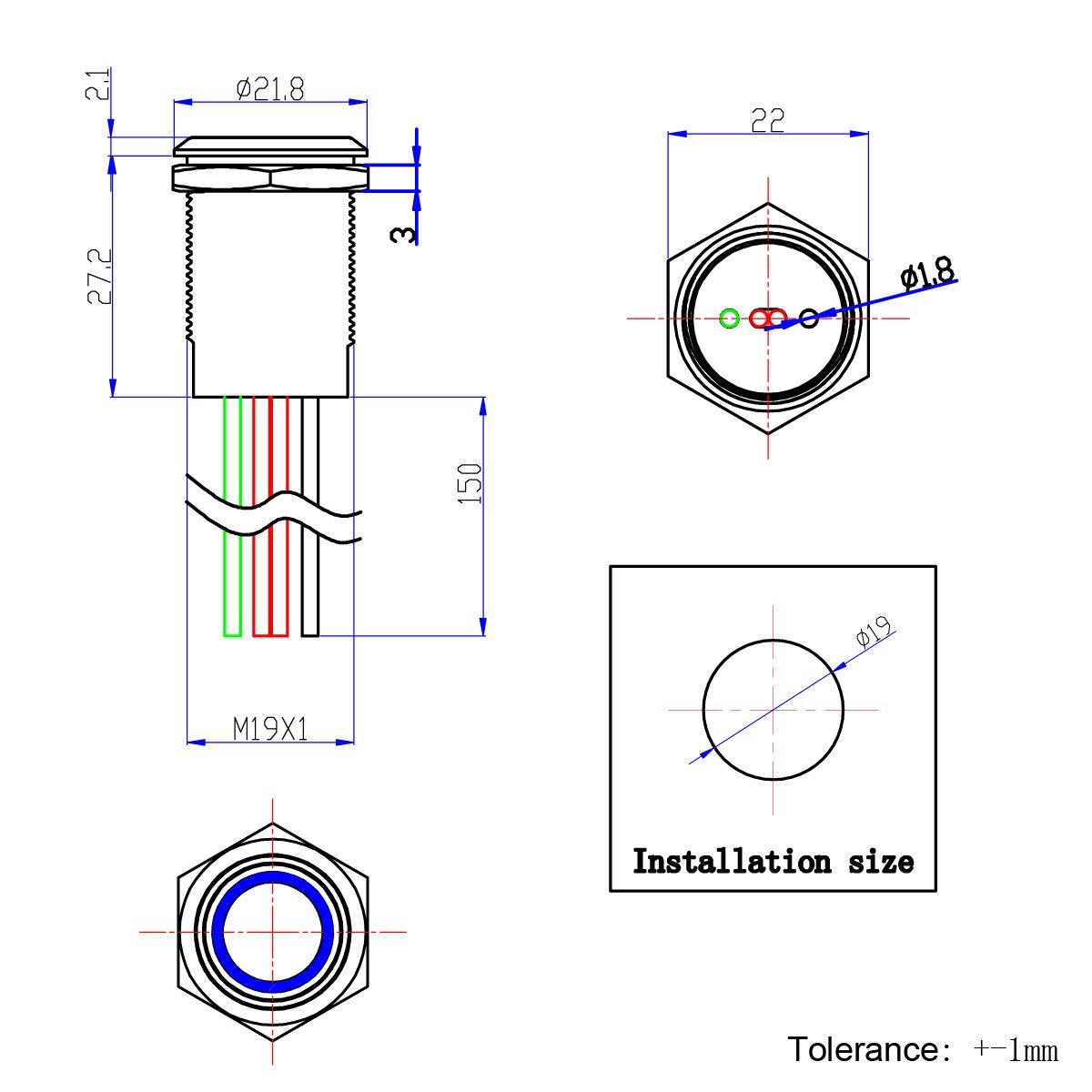

Touch Switch UT19T1 Stepless Dimming Switch DC 6V to 24V Blue LED Suitable for 19mm 3/4" Mounting Hole
Product details
| Management number | 247167267 | Release Date | 2026/08/16 | List Price | US$4.75 | Model Number | 247167267 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

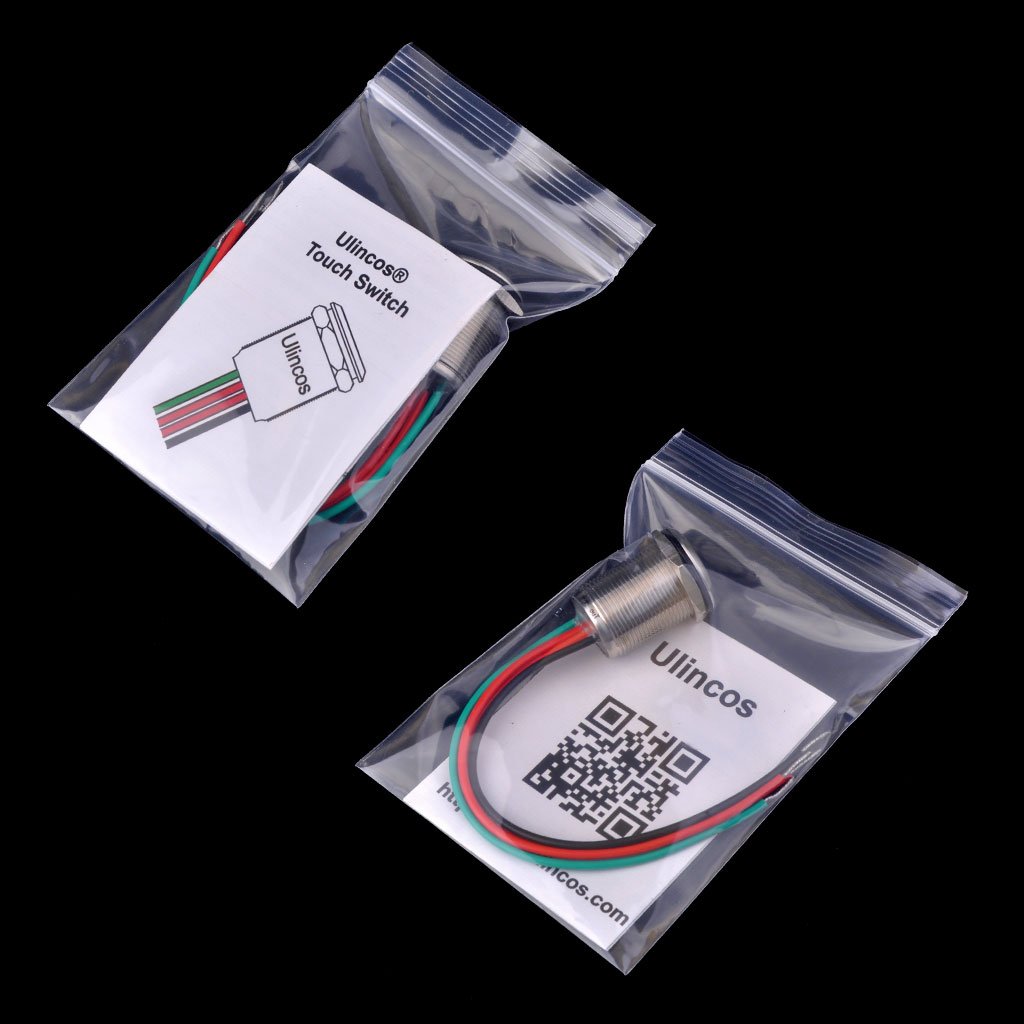

What You Get: 1 * Touch Switch 1 * Instruction What's the Touch Switch: Touch switch, just touch it! The touch switch is rated for 7A MAX /DC 6-24V. What's the Touch Switch Used for: Most often the Stepless Dimming switch is used for lights (Such as critical lights, chassis lamp, dome light) About Stepless Dimming type: 1.The light is off when connecting to electricity. Click it (time <550ms) once to initiate it with the light on. Click it again to let it be off. Continue to cycle. 2.The initial brightness is 100% of the maximum brightness. 3.Touch and hold it (time > 550ms) to initiate stepless dimming control. The brightness increases when touching and holding, and stays at the level when stop holding. When holding more than 3 seconds, the brightness reaches and stays at maximum level. The brightness decreases when touching and holding again, and stays at the level when stop holding. When holding more than 3 seconds, the brightness reaches and stays at minimum level. Continue to cycle. 4.Click and Holding Touch can be used anytime. There is no interference between these two functions. What's Note:*The touch switch can't be used on a pump.It will be burnt out easily.*If you meet the static electricity problem, you can let the switch housing be grounded. *The touch switch doesn't work with wet or damp fingers. *The touch switch cannot be used in AC circuit. Don't exceed the rating volts! Specifications: Head diameter: 7/8" ( 22mm ) Mounting hole size: 3/4" ( 19mm ) Depth inc contacts: 1.1" ( 28mm ) Switch Type: Stepless Dimming Input Voltage: DC 6V-24V Output Current: 7A MAX LED voltage: DC 6V-24V LED color: Blue (always ON) Enclosure material: Stainless Steel Protection level: IK10 Operating Temperature: -20℃ ～ +55℃
- Touch switch, just touch it!
- Stepless Dimming Type: You can Click or Holding Touch the switch to control your lights
- Blue LED ring always light ON, make you quickly find the switch at night or in the dark
- The wires replace the terminal pins, make installing very easy
- Dimming Switch, normally be used to control the lights. Don't exceed the rating amps and volts, you can run it on your other projects.
| ASIN | B07D2DPH6D |
|---|---|
| Color | Stepless Dimming |
| Model | UT19 |
| Wattage | 168 watts |
| Terminal | Pins |
| Brand Name | Ulincos |
| Unit Count | 1 Count |
| Item Weight | 0.27 g |
| Part Number | UT19T1B |
| Switch Type | Touch Switch |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Control Type | Touch |
| Manufacturer | Ulincos |
| Actuator Type | Push Button |
| Material Type | Stainless Steel |
| Mounting Type | Panel Mount |
| Connector Type | Wire |
| Control Method | Touch |
| Current Rating | 7 A |
| Operation Mode | manual |
| Controller Type | Ring |
| Item Dimensions | 7.09 x 0.87 x 0.87 inches |
| Number of Items | 1 |
| Contact Material | Copper, Brass |
| Operating Voltage | 24 volts |
| Specification Met | Ik10, Ipx4 |
| Compatible Devices | Lights (Such as critical lights, chassis lamp, dome light) |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
| Upper Temperature Rating | 55 °C |
| International Protection Rating | IPX4 |
